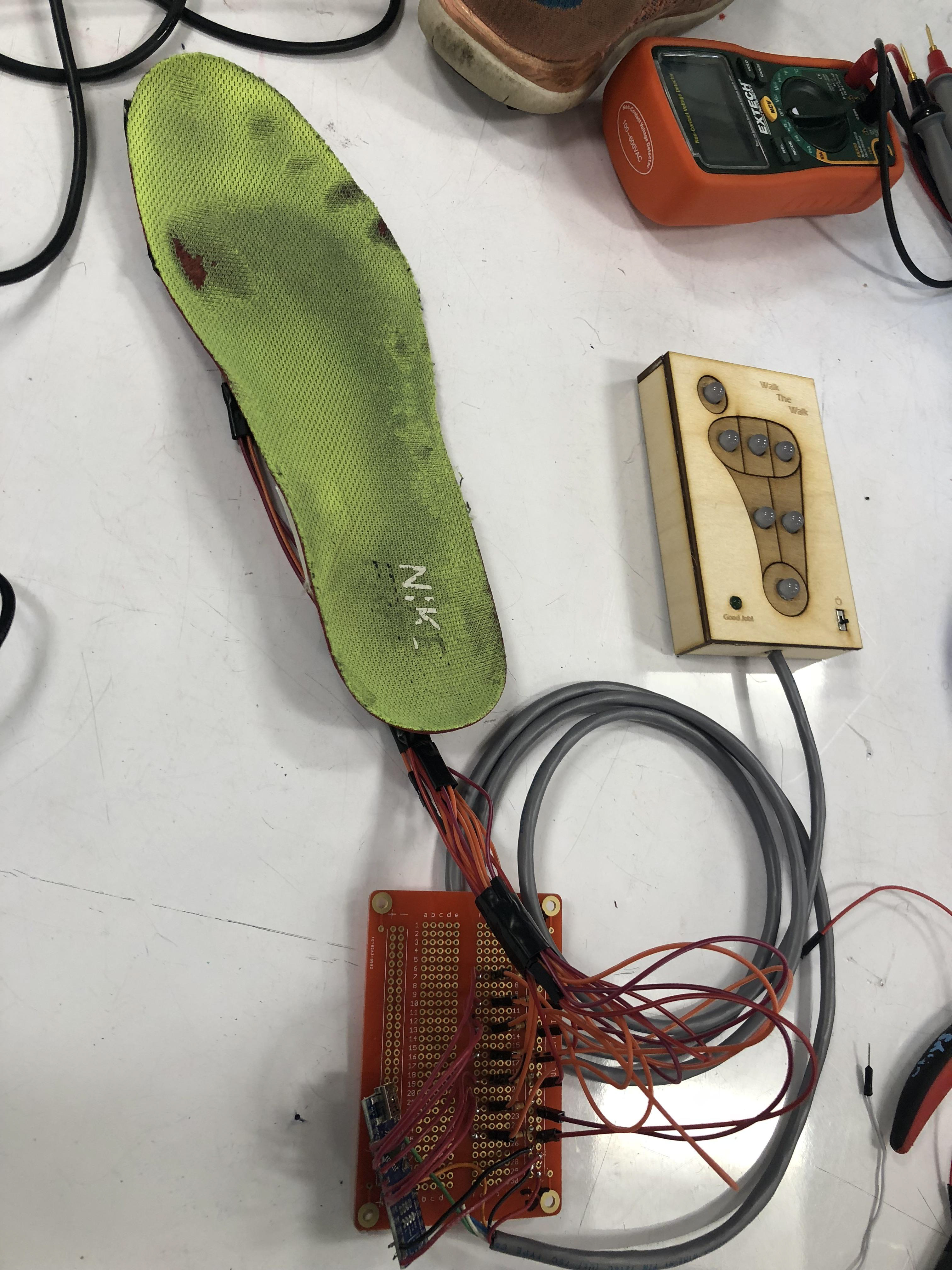

An overall shot of how the device would be used with the handheld display device, the anklet and the sensors in the shoe.

Animation of how the display functions as you move pressure from the bottom of the foot to your toes.

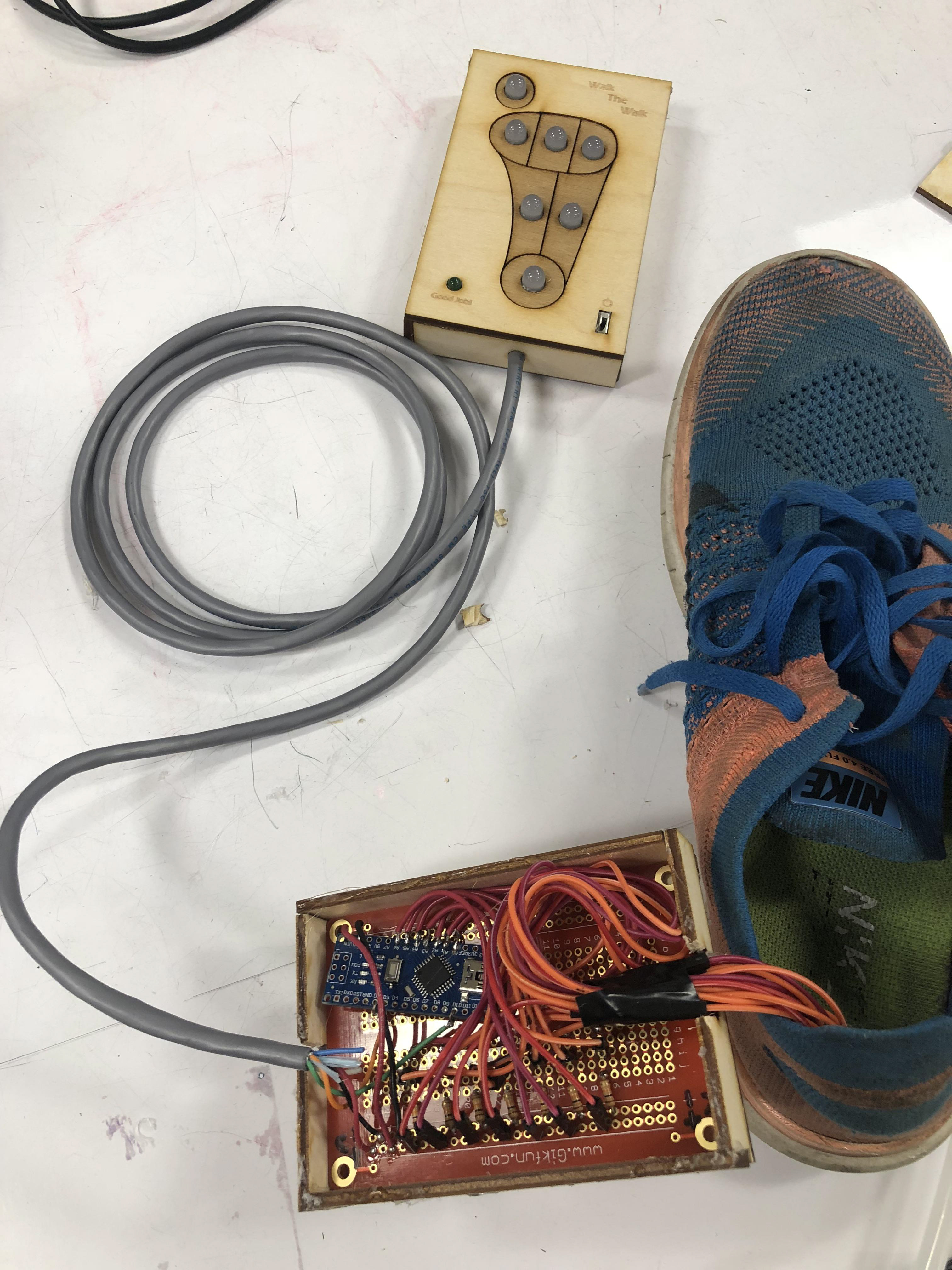

Close up of all the components when the device is off.
Close up of all the components when the device is off.
Close up of all the components when the device is on. Note that the lights are all blue because no pressure is applied to the shoe.
Close up of all the components when the device is on. Note that the lights are all blue because no pressure is applied to the shoe.
Close up image of the display as pressure is applied at the bottom of the foot.
Close up image of the display as pressure is applied at the bottom of the foot.
PROCESS
(Note: full documentation of final and the process can be found here.)
I am someone who has very bad walking habits. Ever since I was a kid, I knew I had wrong pressure distribution when walking, which caused my knees to grow at a wrong angle. To fix that, I need to constantly remind myself to fix the way I walk. This device is designed to help me do that. It visually displays the pressure distribution, plus tells me when I am putting the right amount of pressure.

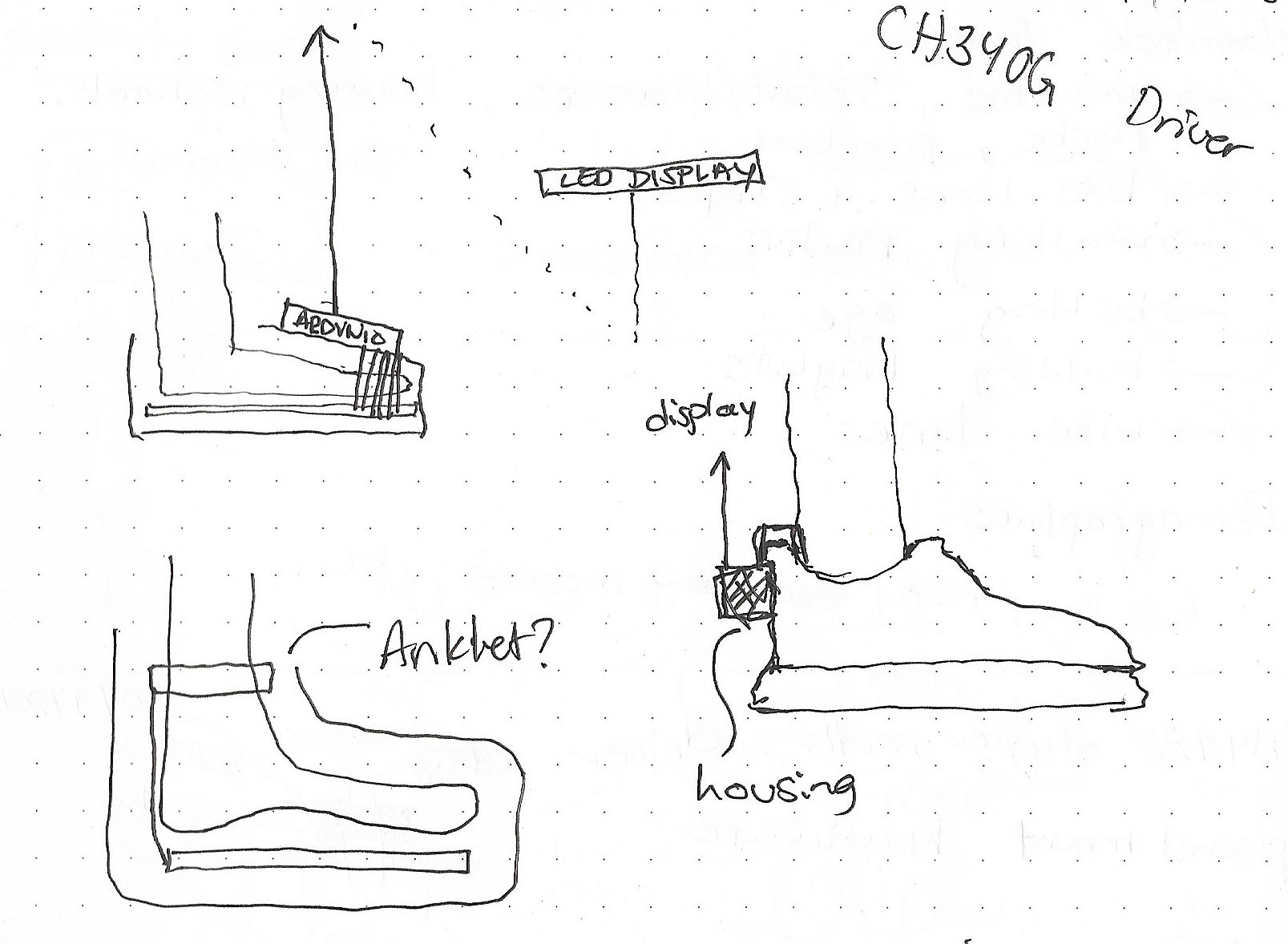

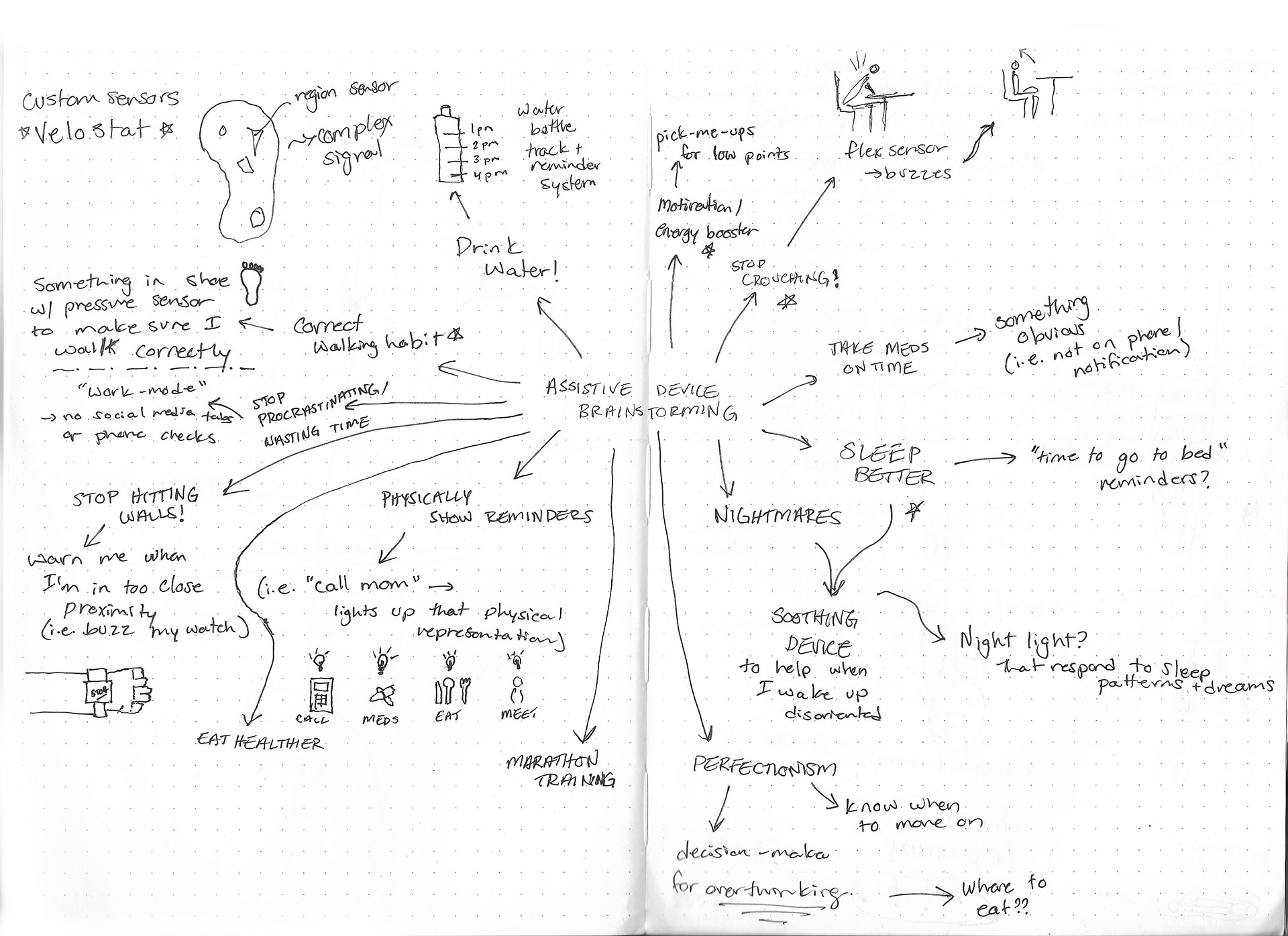

Different brainstorming ideas for an assistive device.

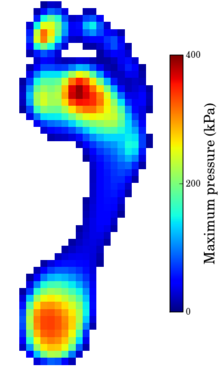

I was inspired by Pedobarography– the science and mapping of foot pressure distribution. This is a healthy pressure distribution example.

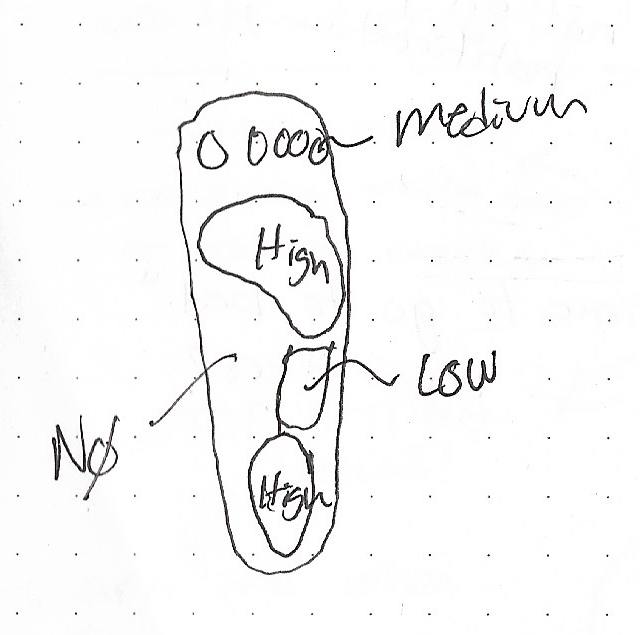

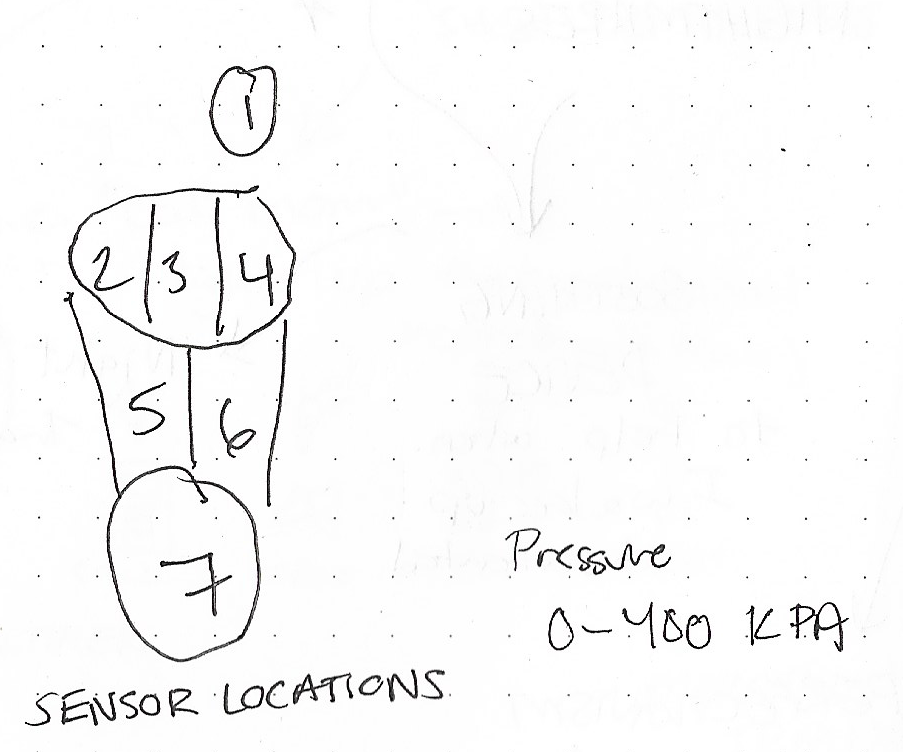

Based on extensive research on the topic, I started sketching ideas on different important pressure points, and how to correctly distribute weight on a foot. I figured these 7 zones are most important places for foot pressure.
After research and ideation, I decided the best way to go about making this it to simultaneously work on two components separately, and then join them once they are complete.  The two components are the inputs, which are the pressure sensors, and the outputs which is their corresponding LEDs.

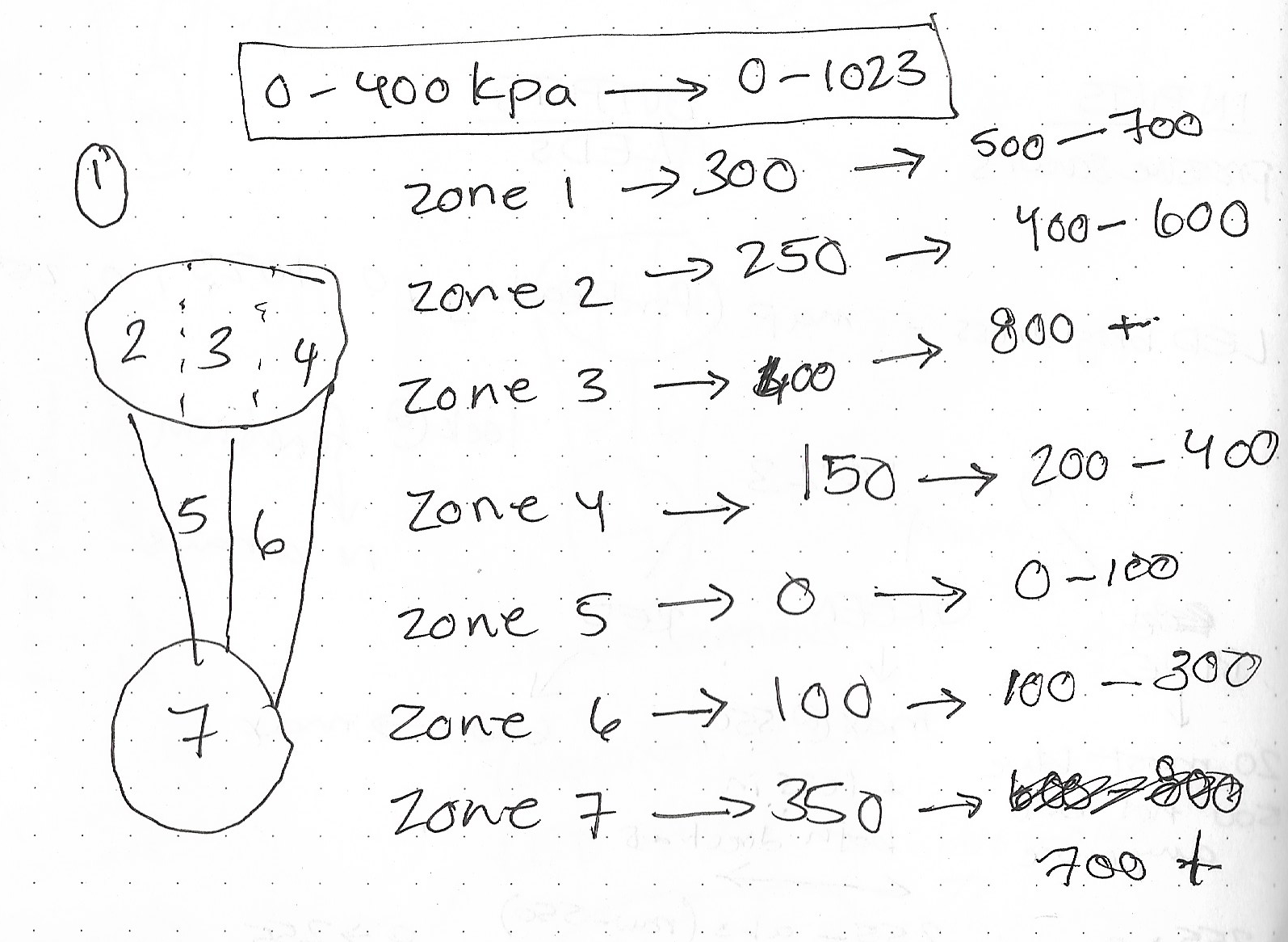

This sketch is the math I was trying to figure out to properly display RGB values on a 0-1023 range in a color gradient. Basically, as pressure increases, the LED goes from blue to green to red. The final values in the code was based on trial and error  while using the shoe, to figure out the right values that makes the gradient look right.

For the “good job!” light:  This sketch is deciphering the research and mapping out the correct pressure distribution for each zone. Then using the values corresponding the 0-1023 value read of the pressure sensor to help map out the correct corresponding RGB value.

PART 1: Getting the pressure sensors to work and map the right colors on the LEDs
PART 2: transferring the sensors and making the shoe

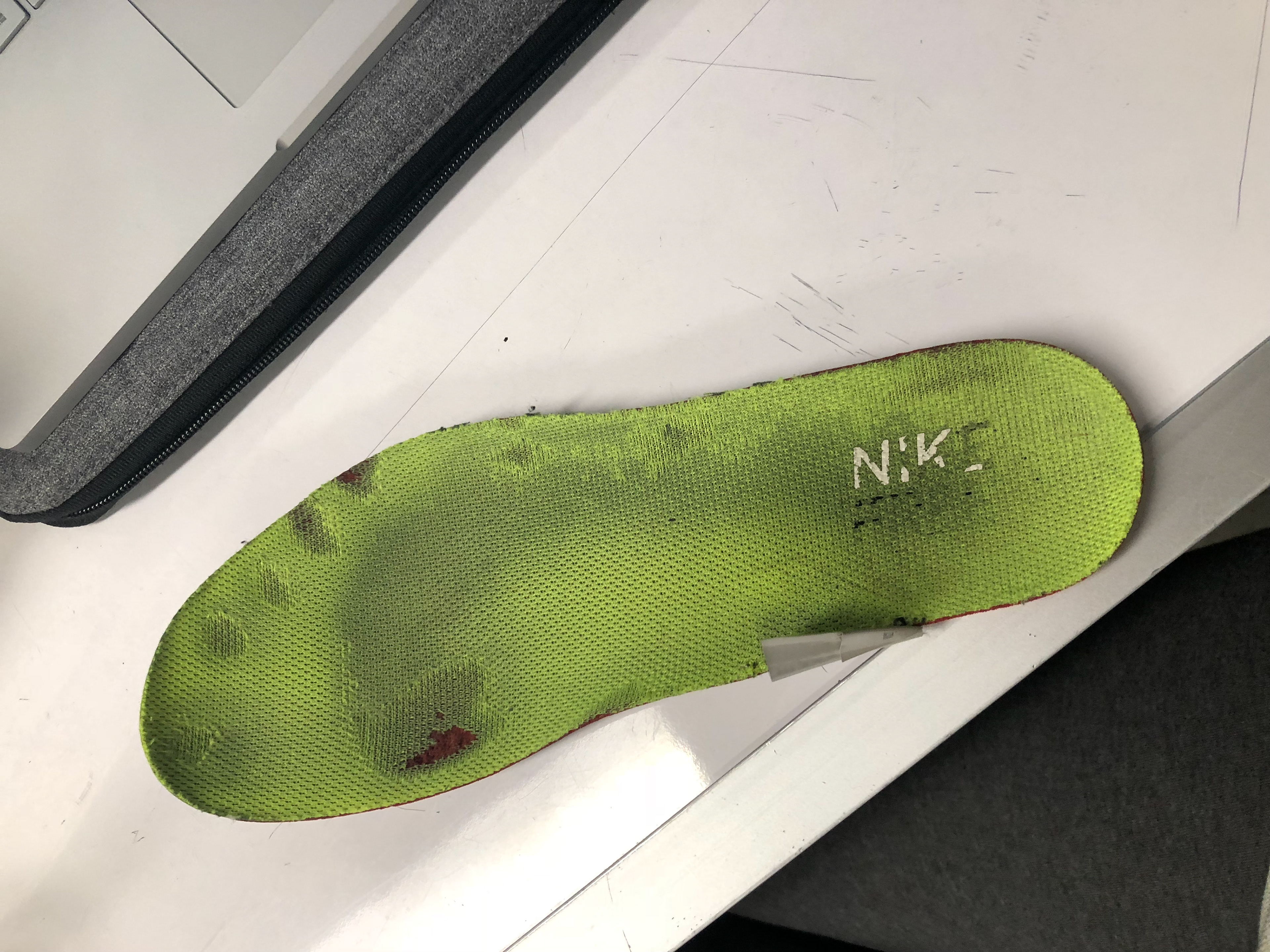

Because I was using an old shoe, it was very helpful, because I could see where I put pressure on my feet, based on where it’s worn out-- that made transferring the zone diagram easier. The biggest issues I faced in this part was the fact that I was working with so many sensors and so some of them would shift out of place and disconnect, specifically, the ones higher up in the shoe.
Old shoe sole.
Old shoe sole.

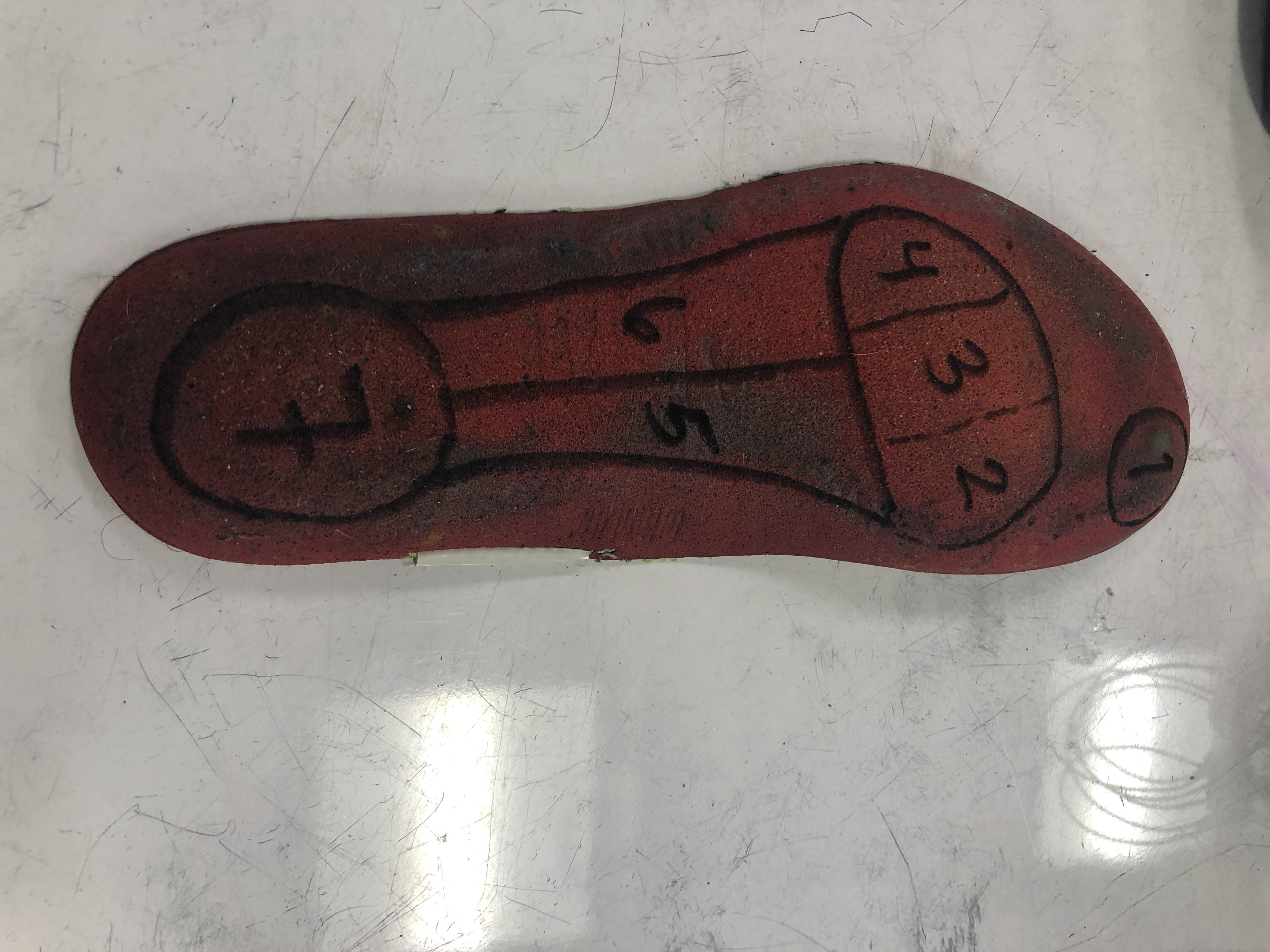

Transferring the zone diagram.
Transferring the zone diagram.

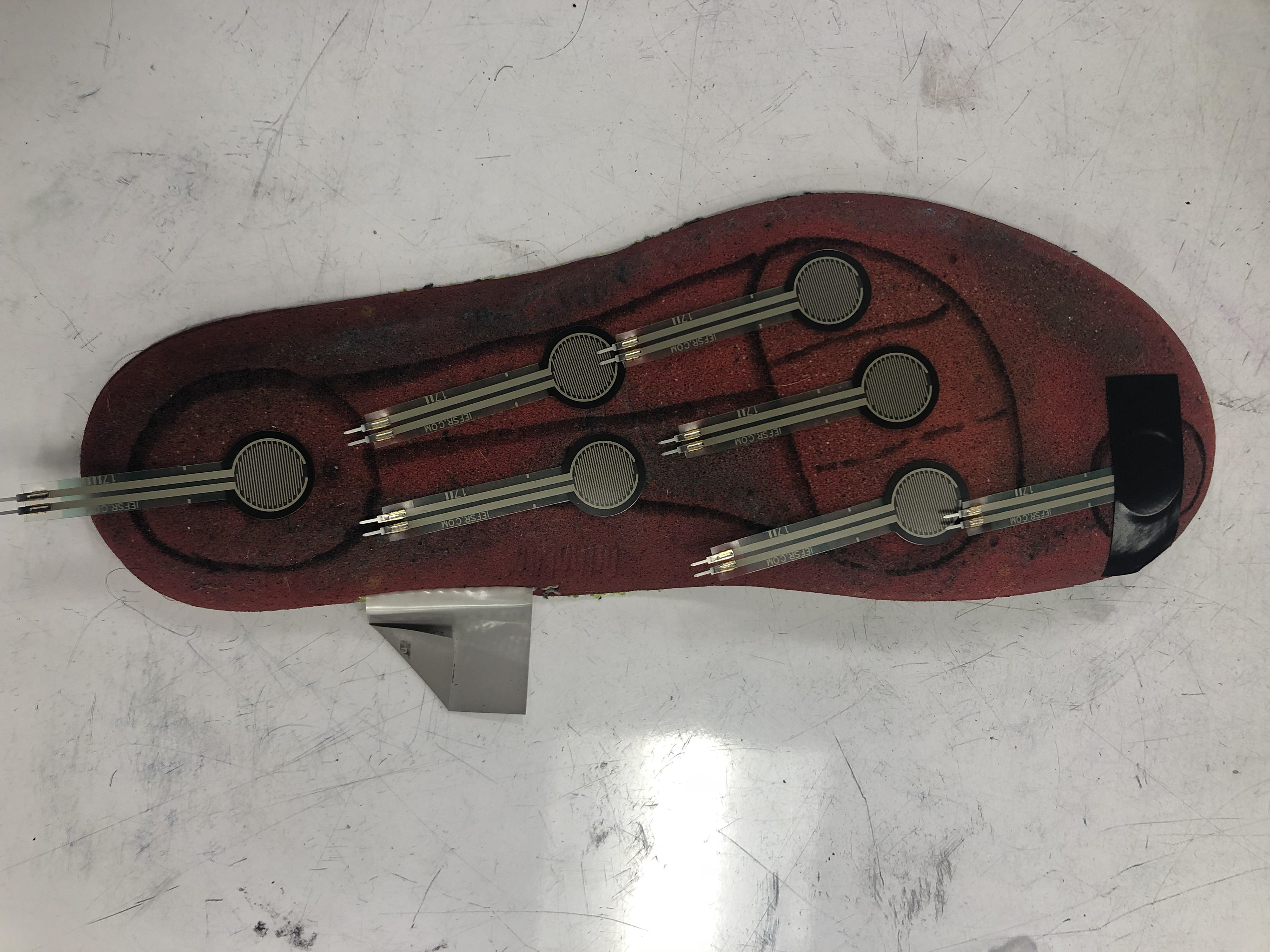

Adding one pressure sensor per zone.
Adding one pressure sensor per zone.

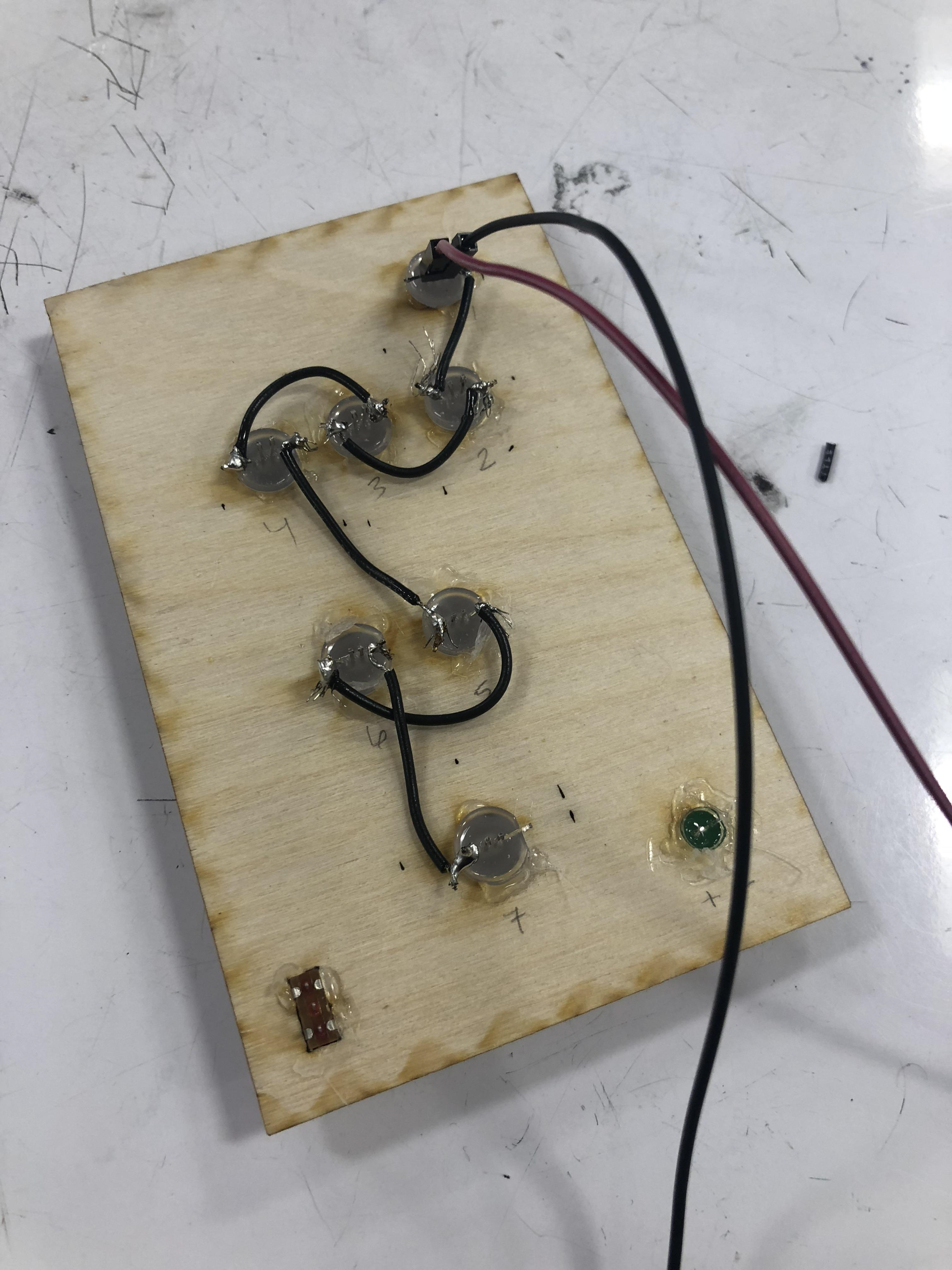

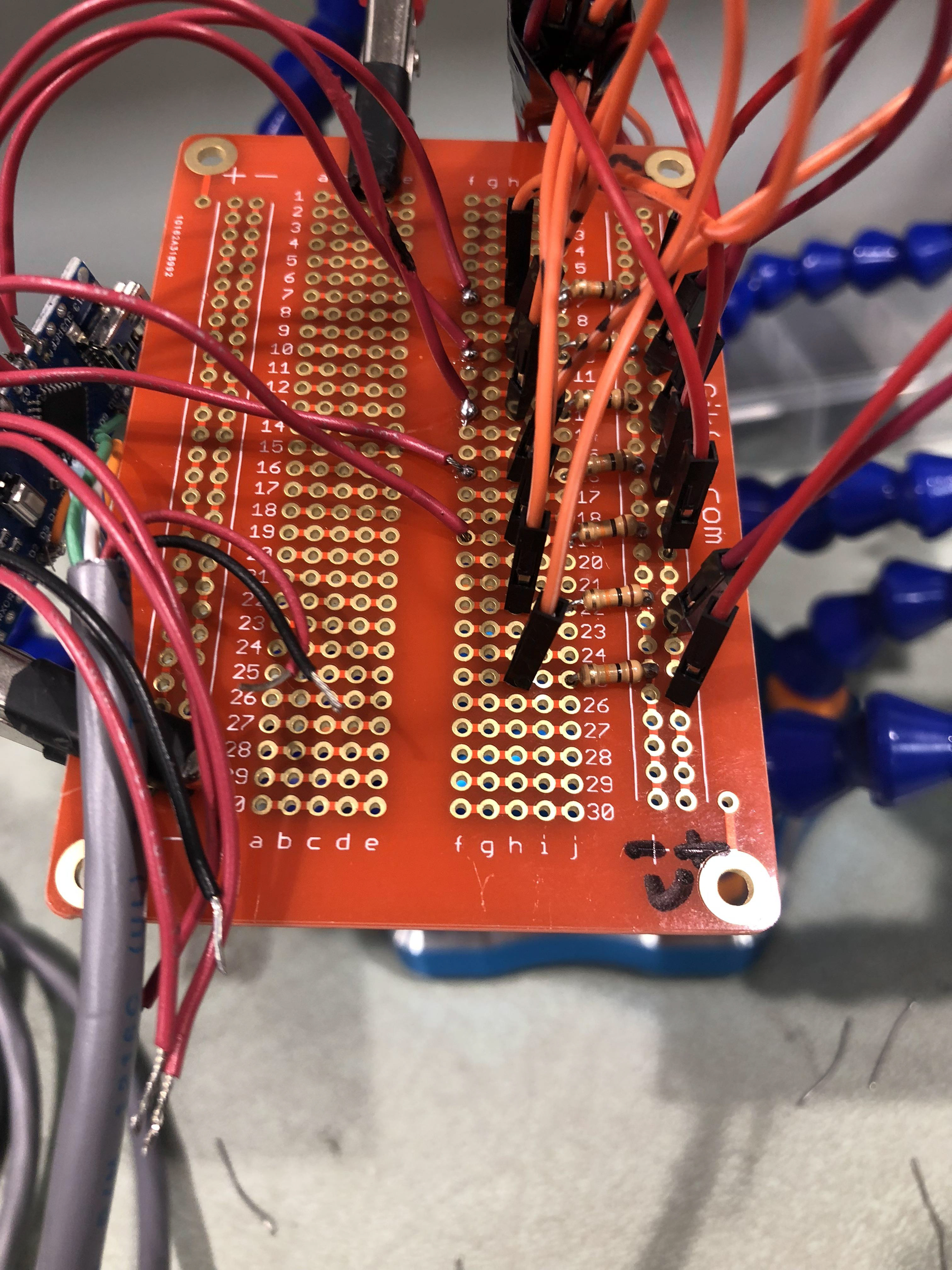

Wiring them up to resisters, power and ground.
Wiring them up to resisters, power and ground.

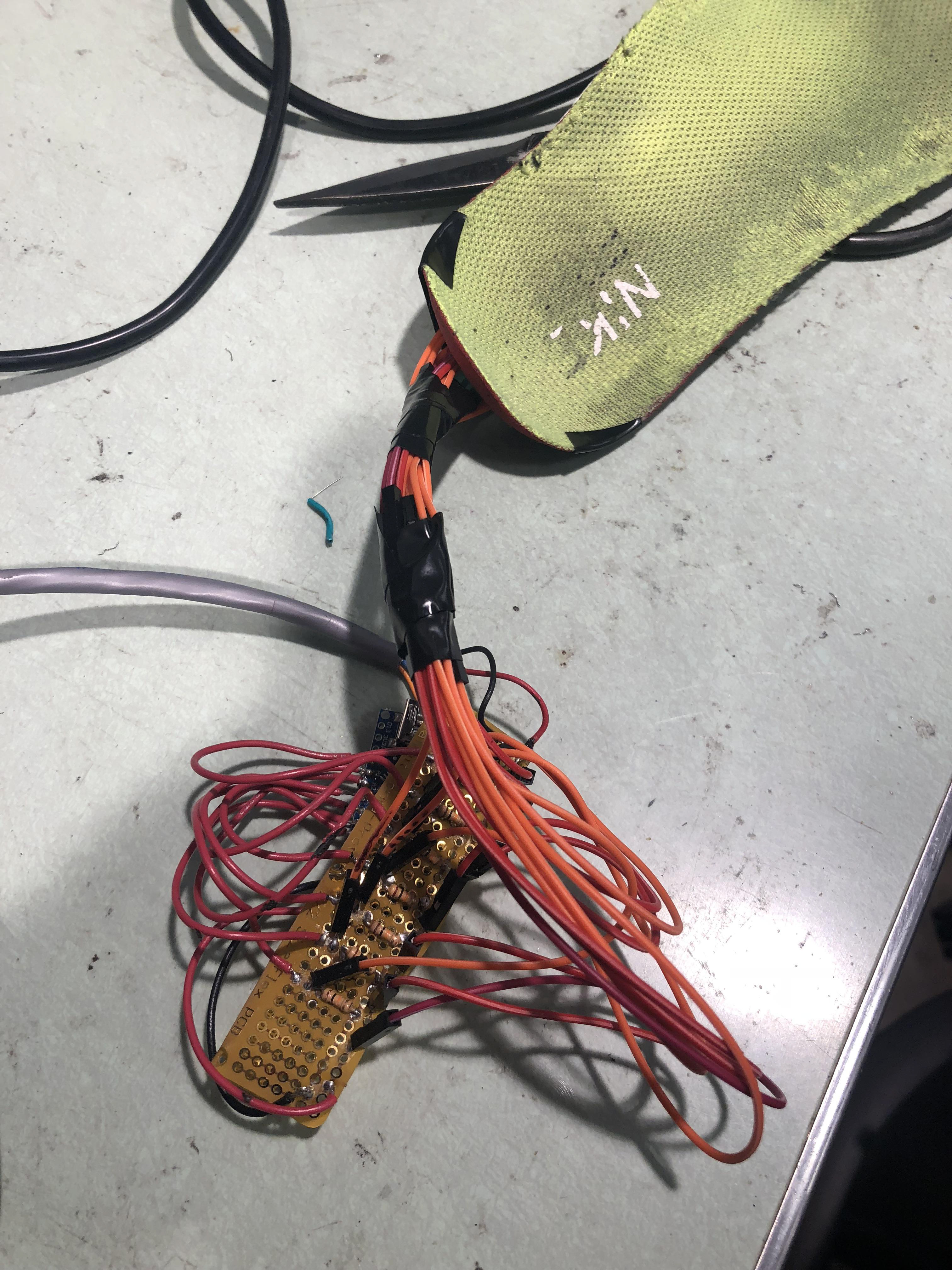

Connecting each sensor to its corresponding input pin.
Connecting each sensor to its corresponding input pin.
Connecting each sensor to its corresponding input pin.
Connecting each sensor to its corresponding input pin.
Connecting everything to the LEDs.
Connecting everything to the LEDs.
Part 3: building the LED housing

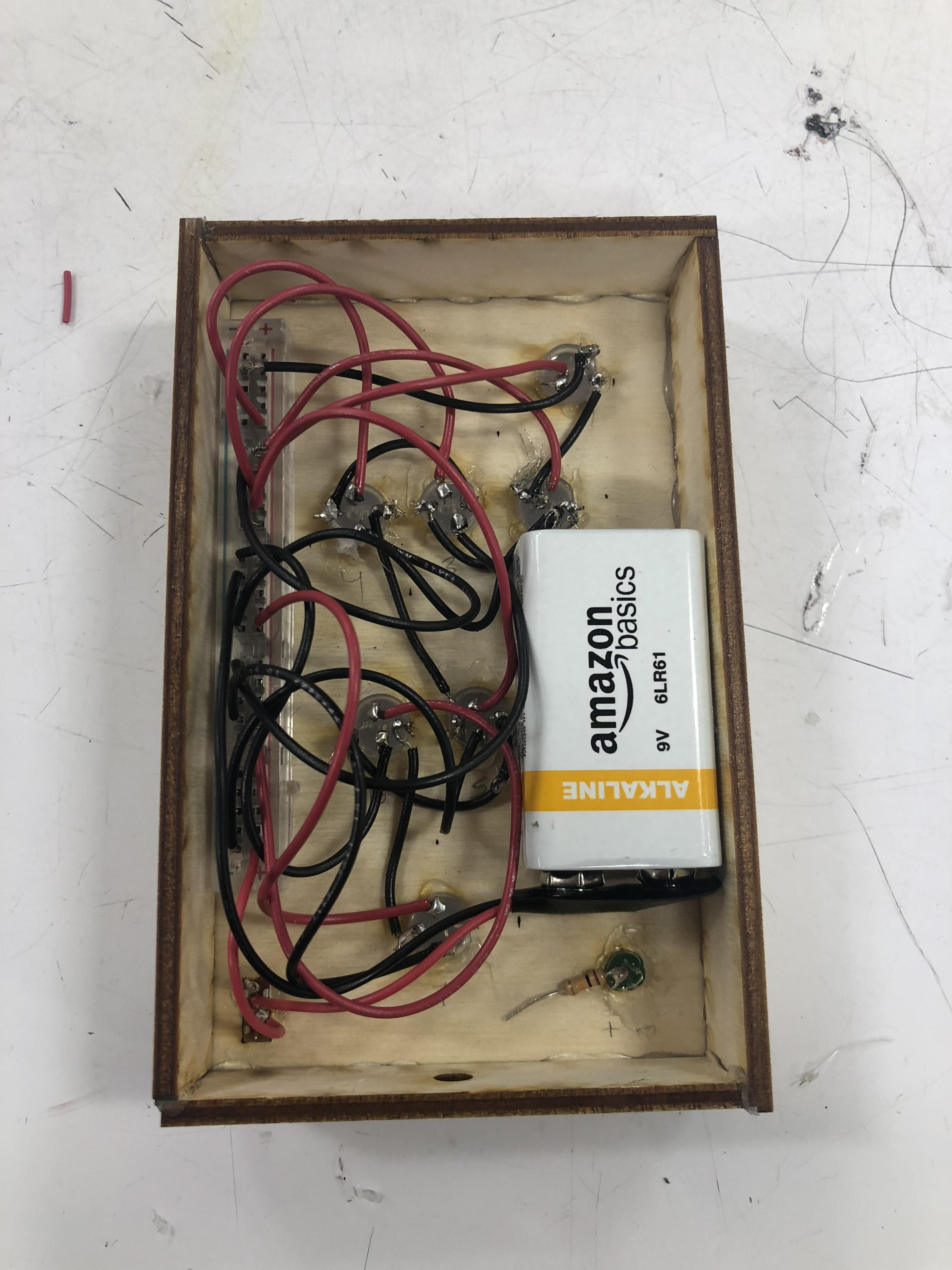

Once the shoe part was working well, it was time to transfer the LEDs to a handheld housing.
Sketch of the way I visualized the handheld device.
Sketch of the way I visualized the handheld device.

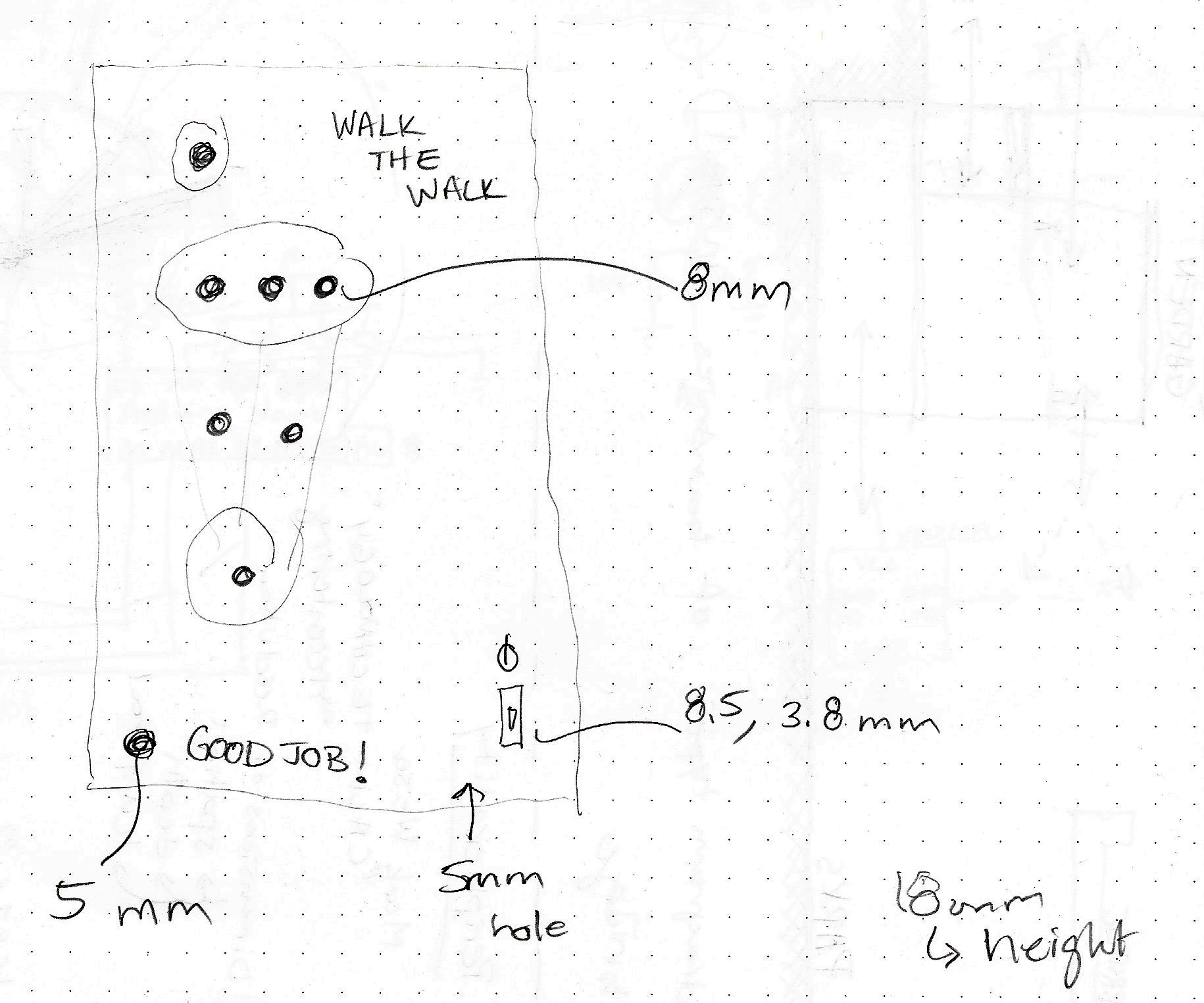

Digitization of sketches, and laser cutting the pieces.
Digitization of sketches, and laser cutting the pieces.
PART 4: making the anklet and combining the LEDs and the pressure sensor
Since this device involves a lot of user movement, I thought an anklet would be the best approach. I wanted to make the anklet as small and least intrusive as possible, so I used a flex soldering board.
Figuring out where the best place to put the connecting housing.
Figuring out where the best place to put the connecting housing.

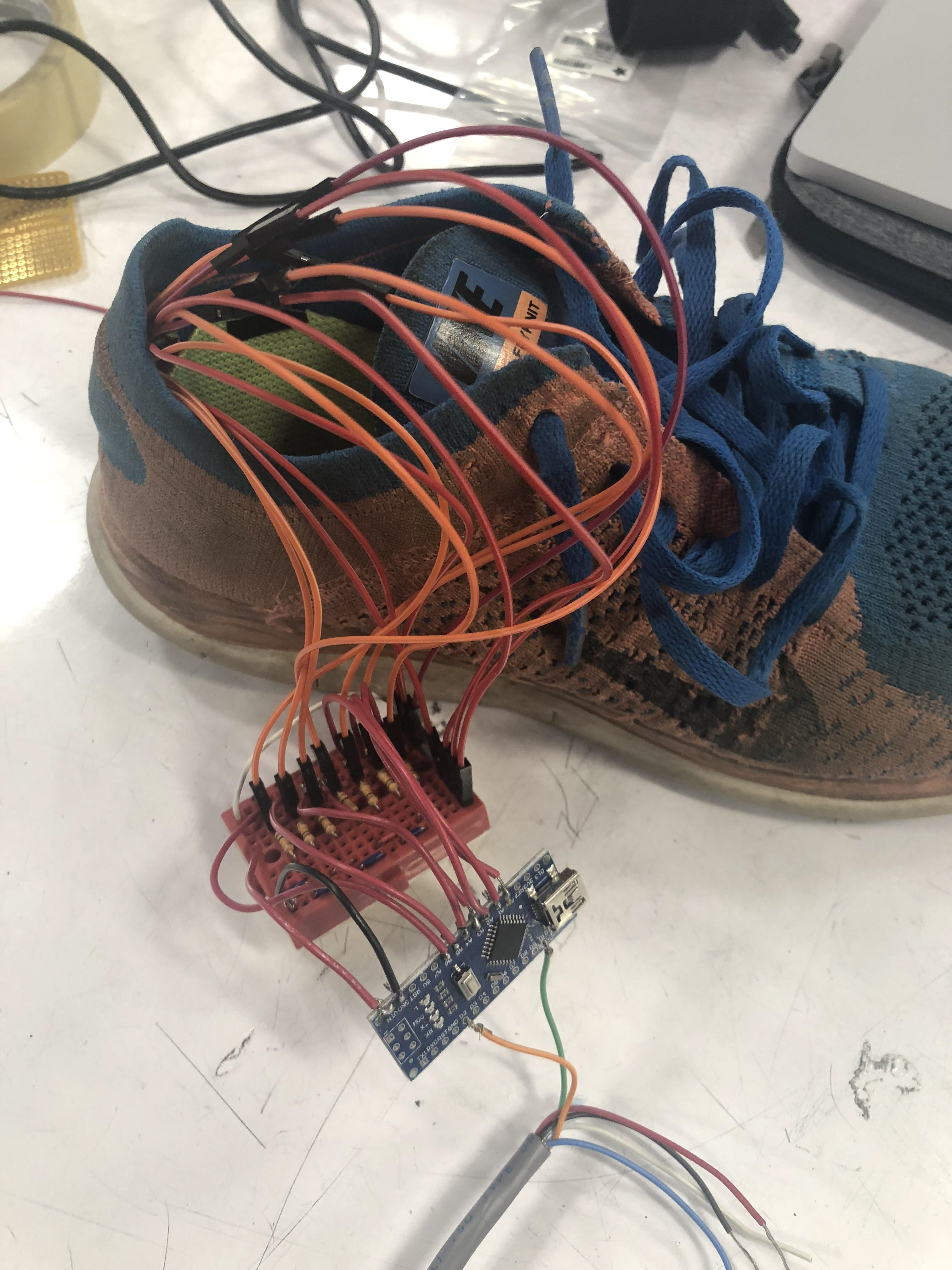

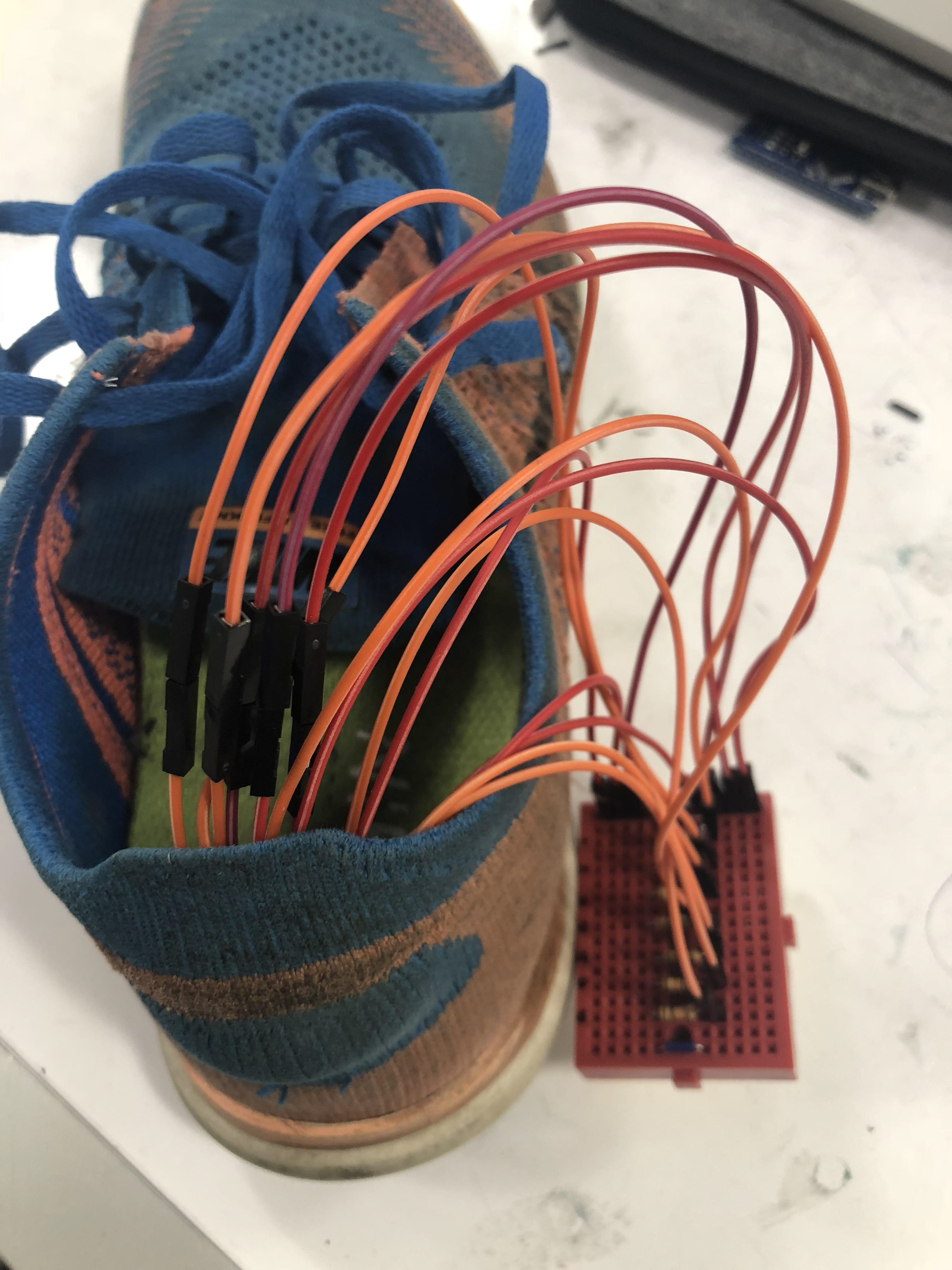

Connecting the shoe to the handheld device.
Connecting the shoe to the handheld device.
BIG MISTAKE!! The flex board was so flimsy and kept breaking and ripping. I kept having to fix it by soldering and re-soldering the connections on the board. At some point, I realized it would take more times to fix the flex board than to just start over with a new, more rigid board. I figured the anklet can grow a bit bigger if it meant the device worked more reliably. And so, I started over….
Soldering, soldering, and more soldering.
Soldering, soldering, and more soldering.
Connecting, connecting, and more connecting.
Connecting, connecting, and more connecting.
Making the anklet housing.
Making the anklet housing.

Alas! The anklet is complete, rigid, and the device works well.

schematic
